Popular Post Hurltim Posted June 17, 2017 Popular Post Posted June 17, 2017 So I was planning on using ash to build this behemoth, but Jen found a reclaimed timber store in Denver that was selling boards from a 100+ year old tobacco barn in Tennessee. How cool is that?!?!?! A humidor made of reclaimed timber from a tobacco barn! I am pretty sure most of it is red oak. There are a few boards that MIGHT be Live Oak. I will know more when I sand them down a bit. I am not a big fan of stains. I prefer to use the natural beauty of the wood but the red oak boards look "flesh colored" when sanded. Creepy. The last pic is some staining/dying combos I have tried. The lower right one is what I am leaning towards. The corner posts will have a lot of machining so I won't be able to preserve the patina. I am leaning towards a java stain for the rails and stiles with the panels being the stained patina boards. This is where I am at for now. I will post as I go. Sent from my SAMSUNG-SM-G920A using Tapatalk 6
Hurltim Posted June 20, 2017 Author Posted June 20, 2017 I like that T.C.L ? color what is that?It's a light brown dye stain under two coats of candlelight stain from General Finishes. I wanted just a tinge of red. I may go darker. I am picking up more stains this weekend.Sent from my SAMSUNG-SM-G920A using Tapatalk 1
planetary Posted June 20, 2017 Posted June 20, 2017 Good luck with the project! I'm a complete moron when it comes to power tools, but I enjoy watching other people practice their skills. Hope it goes well! 2

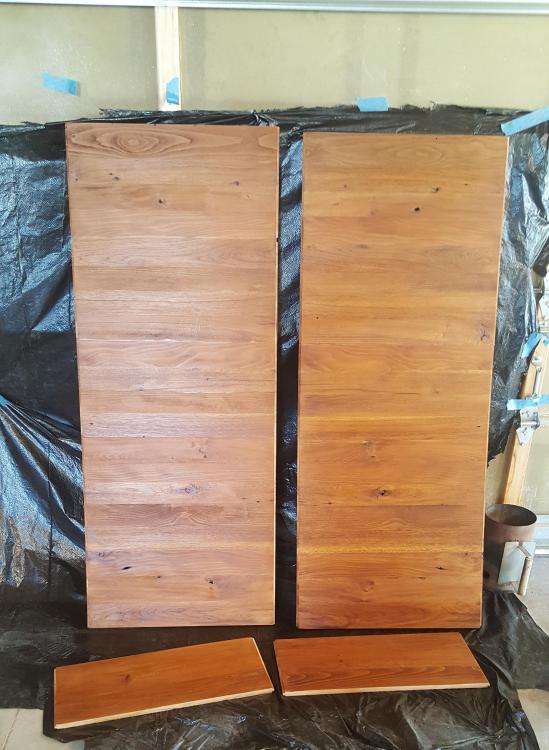

Popular Post Hurltim Posted February 9, 2018 Author Popular Post Posted February 9, 2018 Humidor Project Update:Face frame is done and the side panels are ready for dye/stain/clear coat.I was going to leave them rough like reclaimed lumber (all the wood is machined from 100+ y.o. boards) but I realized that after resawing the boards on the table saw, that almost every board is bookmatched with a mirror image on the other panel. They are a mixture of white oak and beech. The aged white oak (brown boards) is spectacular. I wish I could get enough of it for several other projects.Sent from my SAMSUNG-SM-G920A using Tapatalk 10
BTWheezy Posted February 19, 2018 Posted February 19, 2018 Dude...just want to confirm...this end result is the product of you machining the original 100+ y.o. boards from the tobacco barn into this? Including the T&G work? (Moderated) fantastic work! This is so cool! More pics, more updates not just requested, but required! For those who are casually familiar with woodworking, or not at all, what @Hurltim did here is a TON of work...skills and a metric f*ck ton of patience. It’s like “coaxing” a workable material from something that doesn’t really want to be “coaxed”. This is adult entertainment for woodworkers. Keep the thread going. I’d love to see the progress as you go. One question: how many slivers did you get milling those boards into the initial product?? Rock on bro! - Wheezy 1

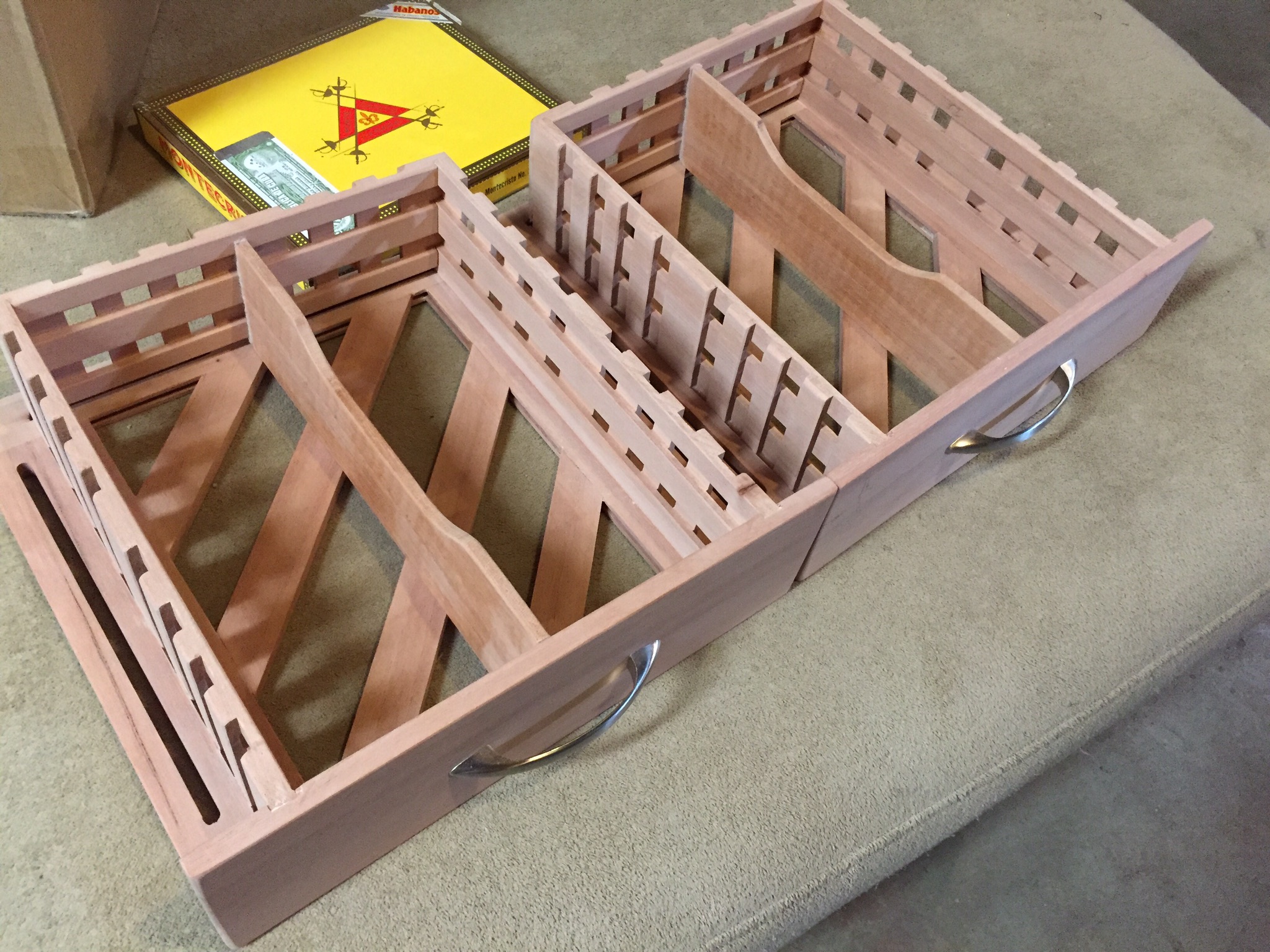

zeedubbya Posted February 20, 2018 Posted February 20, 2018 @Hurltim is a master. It’s been a while, but I’ll post these up again. He made these for me..they’re quite possibly (no they are without a doubt) the nicest drawers I have ever seen for a humidor. The precision is unreal in person. I can’t wait to see the final product as well. 3
bierz Posted March 31, 2018 Posted March 31, 2018 On 3/16/2018 at 8:17 AM, BTWheezy said: @Hurltim Any updates? ? Looks like he hasn't made a posted in over a month. I too would love to see some more progress on this humidor as one day I'd like to build one of my own. 1
MrTANKEm Posted April 18, 2018 Posted April 18, 2018 I hope the build is going on or finished! We would love to see some pictures, it looks like it’s going to be killer!!! 1
n0s4atu Posted June 1, 2018 Posted June 1, 2018 Damn it people. I came in here hoping for an update and all I got was everyone wondering where Tim went. And now someone will probably follow my post in wondering how it's going. Those drawers are unreal. 1
Lucass111 Posted August 18, 2018 Posted August 18, 2018 I want more! Very curious as to how it turned out. 1
Hurltim Posted September 5, 2018 Author Posted September 5, 2018 Howdy All!! Sorry it's been so long for an update, but I have had to work all over the friggin country as of late. So far this year it's been MD, VA, NY back to CO and now CA. Bought the house we live in but haven't had much time to work on the humidor. My wife rebuilt our deck while I have been in Cali so I need to ask her permission to use my tools. Lol! There has been some progress. The sides are framed up and stained and the back is on. The machined red oak frame around the t and g side panels will be painted black due to some irregular voids. Ill have to get a close up pic for you to see what I mean. I have to mount the shelf that separates the compressor area from the plenum chamber then I can start installing the insulation. 3
Hurltim Posted October 13, 2018 Author Posted October 13, 2018 Update: Sides, back and shelves installed. Insulation in and working on the inner walls. Once that's done, I need to order the tangential fans and power supply so I can get measurements for the 3rd walls. Slowly but surely....Sent from my SAMSUNG-SM-G920A using Tapatalk 2
BTWheezy Posted October 20, 2018 Posted October 20, 2018 @Hurltim That stain on the case came out beautiful. Really nice job. Did you take precautions to prevent blotches, or did it just come out gorgeous on its own? Know you’re busy, but keep us posted here! Curious to see how you attack internals (shelves, fan, humidification) and doors.
Hurltim Posted November 22, 2018 Author Posted November 22, 2018 [mention=29766]Hurltim[/mention] That stain on the case came out beautiful. Really nice job. Did you take precautions to prevent blotches, or did it just come out gorgeous on its own? Know you’re busy, but keep us posted here! Curious to see how you attack internals (shelves, fan, humidification) and doors.I used General Finishes water based dye stain as a base followed by oil based stain and then water based poly for a clear coat. One of the unique characteristics of aged wood is that oil based stains will turn that "grey" wood black. So, you want some of that black to show through but not all of it. If you look at the inside of the box prior to insulation, you can see the original saw marks. I really wanted to keep that look but it was not doable to keep that look and make a floating panel. The thickness would vary too much. Sent from my SAMSUNG-SM-G920A using Tapatalk
Hurltim Posted November 22, 2018 Author Posted November 22, 2018 Now that I have the circulation fans, maybe 1000 CFM is a little overkill...lmfao!Sent from my SAMSUNG-SM-G920A using Tapatalk 3
TBBCOLEAFLOVER Posted January 31, 2019 Posted January 31, 2019 Now that I have the circulation fans, maybe 1000 CFM is a little overkill...lmfao!Sent from my SAMSUNG-SM-G920A using TapatalkLooking good. Hope to see an update soon! TALENT!Sent from my iPhone using Tapatalk
